What Is M.2? M.2 vs NVMe Explained Clearly

The confusion starts with product names such as “M.2 2280 PCIe 4.0 x4 NVMe.” One label describes the shape. Another describes the connection. A third describes the storage protocol.

M.2 and NVMe are not competing SSD formats. M.2 describes how a drive is physically packaged and installed. NVMe describes how a compatible storage device communicates with the computer. An M.2 SSD can use NVMe, but an M.2 SSD can also use SATA.

That distinction matters when you buy an SSD, upgrade a laptop, or troubleshoot a drive that physically fits but does not appear in the BIOS.

The short answer: M.2 is physical, NVMe is logical

M.2 is a compact form factor and connector standard; NVMe is a storage protocol commonly used over PCIe. An M.2 SSD may use either the SATA interface or PCIe with NVMe, depending on the drive and the host slot.

Term	What it describes	Typical example
M.2	Physical form factor, module dimensions, and connector family	M.2 2280 SSD
NVMe	Storage communication protocol	NVMe SSD using PCIe
PCIe	High-speed connection bus and lane system	PCIe 4.0 x4
SATA	Storage interface used by SATA drives	SATA III SSD
NAND flash	Non-volatile memory that stores your data	TLC or QLC NAND

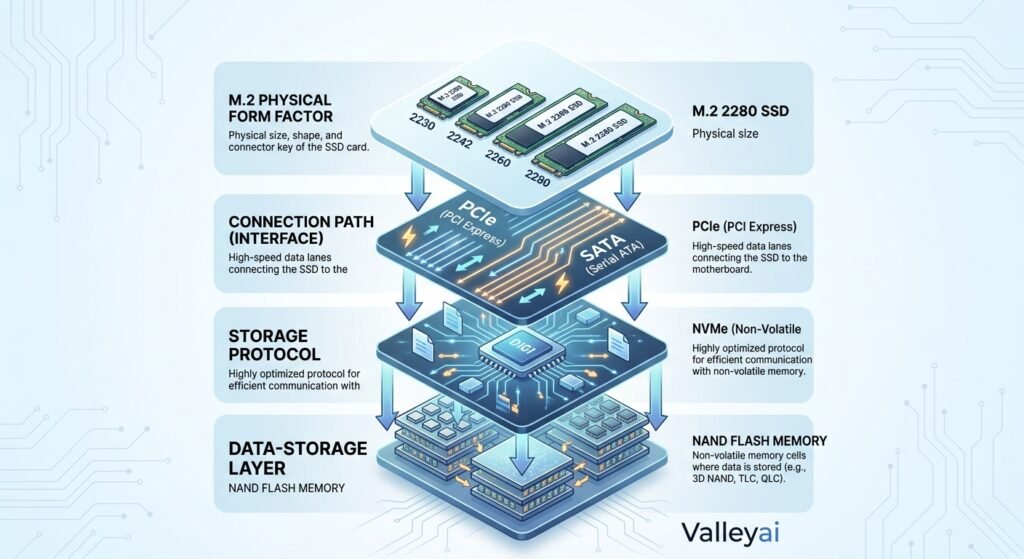

A useful mental model is to treat an SSD like a vehicle:

• M.2 is the vehicle’s physical body and mounting shape.
• PCIe or SATA is the road or connection path.
• NVMe or SATA storage commands are the language used to communicate.
• NAND flash is where the data is stored.

The analogy is not perfect, but it prevents the most expensive misunderstanding: assuming every M.2 drive is automatically an NVMe drive.

What M.2 actually describes

M.2 describes the physical design of a small internal expansion module, including its dimensions, connector, mounting points, and keying. M.2 modules are commonly used for SSDs, Wi-Fi cards, Bluetooth cards, and other internal devices.

An M.2 SSD is a thin circuit board that installs directly into an M.2 slot on a motherboard or laptop. The drive is usually secured with a small screw or retention mechanism at the far end.

M.2 size names use a four- or five-digit code:

• 2230 = 22 mm wide and 30 mm long
• 2242 = 22 mm wide and 42 mm long
• 2260 = 22 mm wide and 60 mm long
• 2280 = 22 mm wide and 80 mm long
• 22110 = 22 mm wide and 110 mm long

The first two digits indicate width. The remaining digits indicate length. A common desktop SSD is M.2 2280, but laptops and handheld devices often use shorter 2230 or 2242 modules.

M.2 does not tell you:

• Whether the SSD uses SATA or NVMe
• Which PCIe generation the drive supports
• How many PCIe lanes the drive uses
• Its actual read or write performance
• Whether a particular motherboard slot supports it

The slot’s physical size is only one part of compatibility.

What NVMe actually describes

NVMe, or Non-Volatile Memory Express, is a storage protocol designed for non-volatile memory such as NAND flash. NVMe is maintained through specifications published by NVM Express, Inc. The official NVM Express specifications describe the protocol family and its technical development.

NVMe is designed to communicate efficiently with modern computers through PCIe. Compared with older storage command systems, NVMe supports many command queues and is designed for the low latency and parallelism available from flash storage.

The relationship normally looks like this:

NAND flash → SSD controller → NVMe protocol → PCIe connection → CPU or chipset

That does not mean NVMe itself is a physical connector. An NVMe SSD can appear in different physical formats, including:

• M.2 modules
• PCIe add-in cards
• U.2 or U.3 enterprise drives
• Other manufacturer-specific assemblies

So the phrase “NVMe drive” tells you more about how the storage communicates than how the storage is shaped.

M.2 vs NVMe: the comparison people actually need

M.2 and NVMe answer different questions.

Question	Relevant term
Will the module fit the slot physically?	M.2 size and keying
Which connection does the drive use?	SATA or PCIe
Which storage command protocol does it use?	NVMe or SATA-related storage commands
How much bandwidth is available?	PCIe generation and lane count
Will the drive work in this computer?	Motherboard or laptop specifications

A product described as “M.2 NVMe” usually means:

1. The drive uses the M.2 physical form factor.
2. The drive communicates through PCIe.
3. The drive uses the NVMe storage protocol.

A product described as “M.2 SATA” usually means:

1. The drive uses the M.2 physical form factor.
2. The drive communicates through the SATA interface.
3. The drive is not using PCIe NVMe communication.

Both drives can look similar. They are not automatically interchangeable.

The two main types of M.2 SSD

The two common M.2 SSD categories are M.2 SATA and M.2 NVMe, and the two types can require different electrical support from the M.2 slot.

M.2 SATA SSD

An M.2 SATA SSD uses the SATA storage interface even though the drive has a compact M.2 shape. Its performance is generally in the same broad range as a 2.5-inch SATA SSD because both use the SATA connection standard.

M.2 SATA can be useful when:

• A laptop supports M.2 SATA but not NVMe
• You need a compact replacement for an older storage device
• The system has limited PCIe support
• Capacity and price matter more than maximum throughput

An M.2 SATA drive is not automatically slower in every practical situation than a 2.5-inch SATA SSD. Both may be constrained by the same SATA interface, although the controller, NAND, firmware, and workload still affect results.

M.2 NVMe SSD

An M.2 NVMe SSD uses PCIe for the connection and NVMe for storage communication. PCIe generation and lane count determine much of the theoretical bandwidth ceiling. PCI-SIG publishes the PCI Express specifications.

M.2 NVMe is usually the preferred option for:

• New desktop builds
• Modern laptop upgrades
• Large file transfers
• Video editing
• Software compilation
• Virtual machines
• Databases and other high-I/O workloads

The fastest specification on the product box does not guarantee the fastest experience in every task. Controller quality, NAND type, cooling, firmware, and sustained workload behavior all matter.

How to decode an SSD product name

A product listing often compresses several technical facts into one line. Consider:

2TB M.2 2280 PCIe 4.0 x4 NVMe SSD

Here is what each part means:

Label	Meaning
2TB	Approximate storage capacity
M.2	Physical form factor
2280	22 mm wide and 80 mm long
PCIe 4.0	PCI Express generation
x4	Four PCIe lanes
NVMe	Storage communication protocol
SSD	Solid-state storage device

That label still does not prove that the drive will work in your computer. You must compare the drive’s requirements with the specific M.2 slot.

A PCIe 4.0 NVMe SSD may operate in a PCIe 3.0 slot when the platform supports backward compatibility, but the drive will normally be limited by the slower connection. Exact behavior depends on the motherboard, laptop, firmware, and drive.

How to check whether an M.2 NVMe drive will work

The official motherboard or laptop manual is the final authority for M.2 compatibility. Product photos, retailer filters, and key shapes are useful clues, but they cannot replace the platform specification.

Use this verification process before buying.

1. Identify the exact computer model

For a desktop, find the precise motherboard model and revision. For a laptop, identify the full model number, not just the product family name.

Two laptops with nearly identical names can have different M.2 slots, supported lengths, or storage limits.

2. Read the M.2 slot specification

Look for terms such as:

• M.2 SATA
• PCIe x4
• PCIe NVMe
• Socket 3
• 2230, 2242, or 2280
• Supports SATA and PCIe
• Supports PCIe only

A specification that says “M.2 PCIe x4” is different from one that says “M.2 SATA.” A slot that supports both modes should say so in the manual or board specifications.

3. Match the physical length

Confirm that the motherboard or laptop has a mounting point for the SSD length you plan to buy. An M.2 2280 drive will not necessarily fit a device designed only for an M.2 2230 module.

Some laptops also have clearance limits involving single-sided or double-sided SSDs. The service manual may mention those restrictions.

4. Check keying and connector design

M.2 drives use notch patterns called keys. M-key, B-key, and B+M-key are common labels.

Keying can indicate which electrical contacts and signaling modes a module may use, but keying is not a complete compatibility test. A drive can physically enter a slot and still fail because the slot does not support the drive’s protocol.

When an M.2 drive fits but is missing from the BIOS, repeatedly reseating the drive is rarely the best first move. Check whether the slot supports SATA, PCIe, or both before assuming the SSD is defective.

5. Review PCIe generation and lane count

Check whether the slot supports PCIe 3.0, PCIe 4.0, or PCIe 5.0, and whether it provides x2 or x4 connectivity.

The drive and slot do not always need to use the same PCIe generation for basic operation. The connection generally negotiates a compatible mode, with performance limited by the slower side. The motherboard documentation should confirm the supported combination.

6. Look for shared lanes

Some motherboard designs share resources between M.2 slots, PCIe slots, and SATA ports. Installing an M.2 drive may disable one or more SATA ports, reduce an expansion slot’s available lanes, or change how another M.2 slot operates.

This is not a defect. It is a platform design choice documented in the motherboard manual.

Why physical fit does not prove compatibility

Physical fit proves only that the module and connector can align; it does not prove that the host slot supports the drive’s signaling or protocol.

Think of the M.2 connector as a shared-looking doorway. Different devices may use different electrical paths behind that doorway.

Possible situations include:

• An M.2 slot that supports SATA only
• An M.2 slot that supports PCIe NVMe only
• An M.2 slot that supports both SATA and PCIe NVMe
• A slot with a physical key that differs from the drive
• A slot that supports a shorter module than the SSD you purchased
• A slot whose lanes are shared with another device

M-key drives are commonly associated with PCIe x4 NVMe designs. B-key or B+M-key drives can be associated with SATA or lower-lane PCIe designs. Those are common patterns, not universal rules.

The motherboard or laptop manual wins over visual inspection.

Which is faster in real use?

M.2 NVMe is usually faster than M.2 SATA because PCIe provides a higher bandwidth ceiling than SATA, but the visible improvement depends on the workload and the rest of the system.

The SATA-IO specifications provide the standards context for Serial ATA storage. PCIe NVMe drives can use more bandwidth than SATA-based SSDs, especially as PCIe generations advance.

Performance depends on several layers:

• PCIe generation
• Number of PCIe lanes
• SSD controller
• NAND flash type
• DRAM or host-memory design
• Drive capacity
• Temperature
• Firmware
• Queue depth
• Sequential versus random workload
• Amount of data written continuously

Where NVMe gains are easier to notice

NVMe can provide meaningful benefits during:

• Large file transfers
• Video editing and media caching
• Software builds
• Virtual machine workloads
• Database operations
• Heavy multitasking
• Large game installations or asset transfers

Where the difference may be modest

The improvement can be less dramatic during:

• Web browsing
• Email
• Office applications
• Light photo management
• Basic startup tasks
• Games that are limited by CPU, GPU, or asset design

An NVMe SSD can benchmark several times faster than a SATA SSD while feeling only moderately faster during ordinary desktop use. That is not contradictory. Peak sequential throughput and perceived application responsiveness measure different things.

A fast PCIe 5.0 drive can also lose its advantage during long writes if heat causes thermal throttling. A heatsink and adequate airflow may matter more than another step up in advertised peak speed.

Can you use M.2, NVMe, and SATA drives together?

Many desktops can use an M.2 NVMe SSD alongside a 2.5-inch SATA SSD or hard drive, but the supported combination depends on motherboard lane allocation and port-sharing rules.

Common configurations include:

• One M.2 NVMe boot drive plus a 2.5-inch SATA data drive
• One M.2 NVMe SSD plus several hard drives
• An M.2 SATA SSD plus a 2.5-inch SATA SSD
• Two M.2 NVMe drives, if the motherboard provides enough supported slots
• An M.2 NVMe SSD plus an M.2 SATA SSD, if both slot modes are supported

Before installation, check whether:

• A particular M.2 slot disables SATA ports
• Two M.2 slots share PCIe lanes
• The second slot runs at fewer lanes
• The slot is connected to the CPU or chipset
• BIOS firmware recognizes the drive
• The operating system supports the intended boot configuration

A laptop is usually less flexible. Some laptops have one storage slot, while others use a proprietary layout or reserve the M.2 connector for a specific drive type.

When M.2 SATA still makes sense

M.2 SATA remains a sensible choice when the computer supports SATA but not NVMe, or when the upgrade is limited by cost, capacity, or platform compatibility.

Choose M.2 SATA when:

• The manual lists SATA support only
• You are replacing an older M.2 SATA drive
• The workload is light and the price is favorable
• You need a compact drive in a SATA-only laptop
• The system cannot use the additional PCIe bandwidth

Do not buy M.2 SATA solely because it looks like an NVMe SSD. Confirm the slot mode first.

Which type should you choose?

Use the following decision framework:

Your situation	Usually sensible choice
New desktop with a modern PCIe M.2 slot	M.2 NVMe
Laptop manual explicitly supports PCIe NVMe	M.2 NVMe in the supported size
Older laptop lists M.2 SATA only	M.2 SATA
Existing 2.5-inch SATA SSD still meets your needs	Keep it unless capacity or workload justifies an upgrade
Video editing, virtual machines, or large project files	NVMe with adequate cooling
Basic office and web use	The best compatible SSD at a reasonable capacity
Multiple-drive desktop build	Check lane-sharing and disabled-port notes first

Capacity often improves daily convenience more than a small increase in benchmark speed. A nearly full SSD can perform poorly and leave little room for updates, temporary files, or working data.

For a system drive, also consider endurance, warranty, firmware support, and backup strategy. The SSD with the highest sequential read number is not automatically the best long-term choice.
